MainBoard Gigabyte B550-AORUS ELITE V2

Hãng sản xuất

Model

CPU

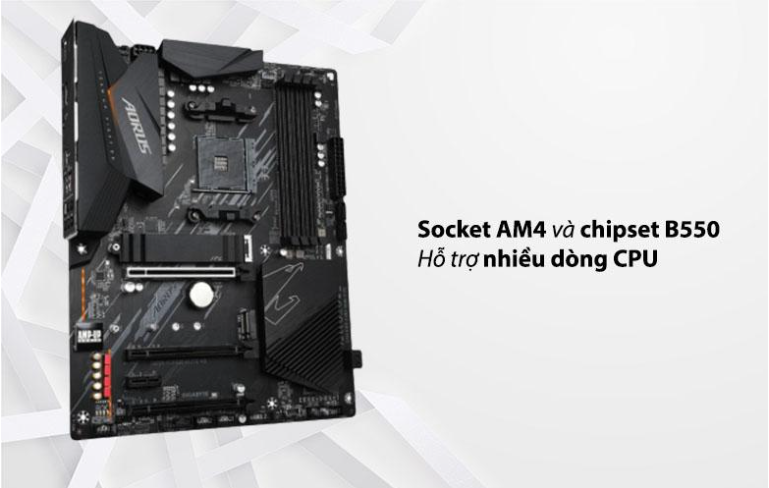

AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors

Chipset

AMD B550

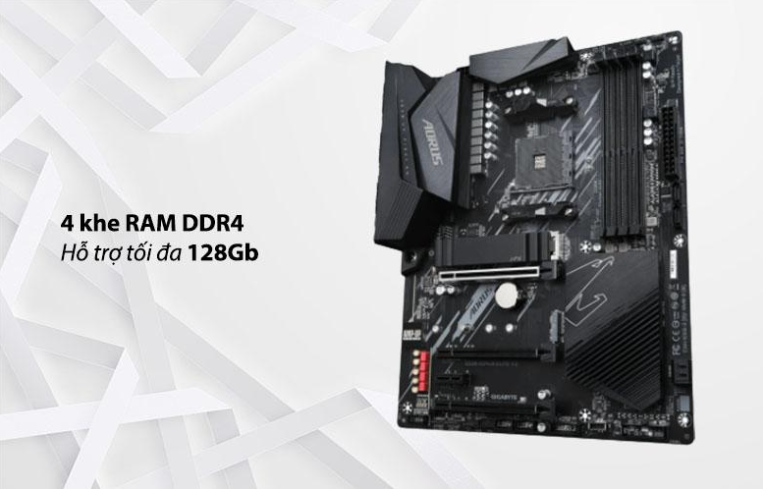

Bộ nhớ

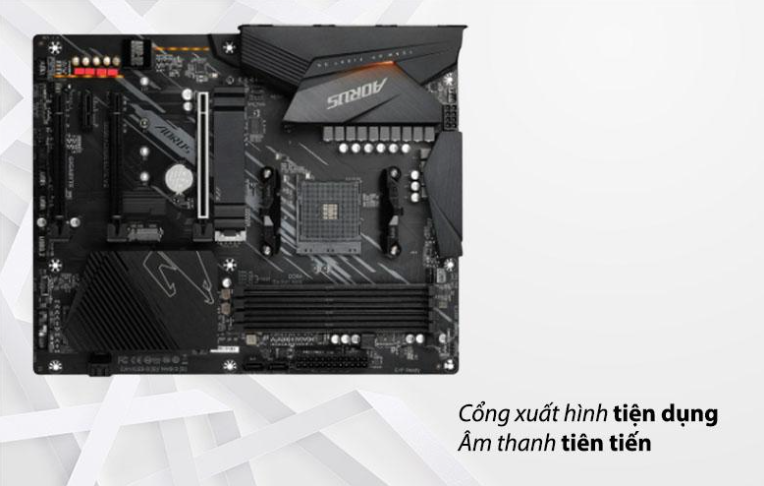

Cổng xuất hình onboard

Audio

1.    Realtek® ALC1200 codec
2.    High Definition Audio
3.    2/4/5.1/7.1-channel
4.    Support for S/PDIF Out

LAN

Realtek^® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)

Khe mở rộng

1.    1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- 3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode
- 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
2.    1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:
- Supporting PCIe 3.0 x2 mode
3.    1 x PCI Express x16 slot (PCIEX1_2), integrated in the Chipset:
- Supporting PCIe 3.0 x1 mode
4.    1 x PCI Express x1 slot (PCIEX1_1), integrated in the Chipset:
- Supporting PCIe 3.0 x1 mode

Ổ cứng hỗ trợ

1.    1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
- 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs
- 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
2.    1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
- Supporting SATA and PCIe 3.0 x4/x2 SSDs
3.    4 x SATA 6Gb/s connectors, integrated in the Chipset:
- Support for RAID 0, RAID 1, and RAID 10

USB

CPU:
1.    2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
2.    2 x USB 3.2 Gen 1 ports on the back panel
Chipset:
1.    1 x USB Type-C™ port with USB 3.2 Gen 1 support, available through the internal USB header
2.    1 x USB 3.2 Gen 1 port on the back panel
3.    2 x USB 3.2 Gen 1 ports available through the internal USB header
4.    2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
1.    4 x USB 2.0/1.1 ports available through the internal USB headers

Cổng kết nối ( I/O bên trong)

Cổng kết nối ( I/O Phía sau)

1.    1 x DisplayPort
2.    1 x HDMI port
3.    2 x USB 3.2 Gen 2 Type-A ports (red)
4.    3 x USB 3.2 Gen 1 ports
5.    2 x USB 2.0/1.1 ports
6.    1 x Q-Flash Plus button
7.    1 x RJ-45 port
8.    1 x optical S/PDIF Out connector
9.    5 x audio jacks

Bộ điều khiển I / O

iTE^® I/O Controller Chip

H/W Monitoring

1.    Voltage detection
2.    Temperature detection
3.    Fan speed detection
4.    Water cooling flow rate detection
5.    Overheating warning
6.    Fan fail warning
7.    Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install.

BIOS

1.    1 x 256 Mbit flash
2.    Use of licensed AMI UEFI BIOS
3.    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Các tính năng độc đáo

1.    Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
2.    Support for Q-Flash Plus
3.    Support for Q-Flash
4.    Support for Xpress Install

Phần mềm đóng gói

1.    Norton® Internet Security (OEM version)
2.    Realtek® 8125 Gaming LAN Bandwidth Control Utility

Hệ điều hành

Kích cỡ

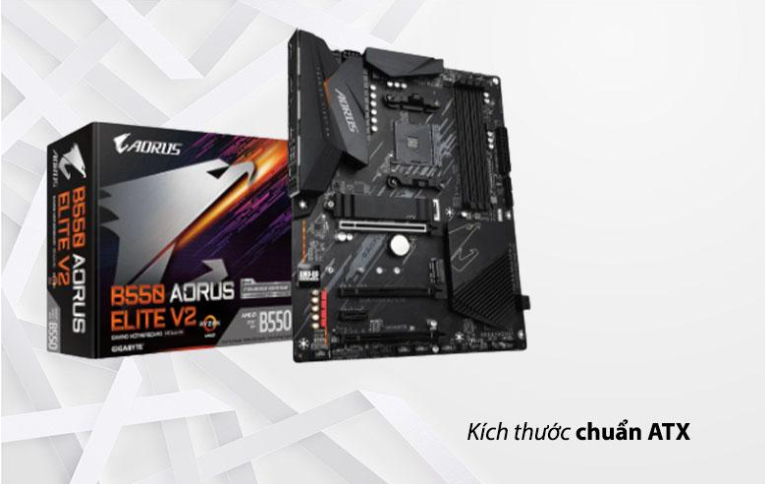

ATX Form Factor; 30.5cm x 24.4cm

Ghi chú
